Configuration

1. The main microscope:             one

2. Eyepiece 10X, 12.5X:         2 pcs. each

3. objective lens 10X, 40X (flat-field), 100 (oil):  1 pc. Each

4. binocular tube:                 one

5. 10 X eyepiece micrometer :       one

6. micrometer-foot (0.01) :         one

7. contents pressure spring:         one

8. slide φ10, φ20, φ42 :             per one

9. filter (yellow, green, gray and frosted glass):per one

10. fir oil :                       one bottle

11. light bulb (bromine tungsten lamp) (standby): two

12. fuse:                          one

Applications & features:

1. Used to identify and analyze the organizational structure of all kinds of metals and alloy materials.

2. It is a binocular-type inverted metallographic microscope

3. It can be equipped with photographic device to proceed photomicrography.

4. Due to the surface of specimen coinciding with the table surface, it has no limit to the height of specimen.

5. The equipment base has large supporting area and the arm bend is strong which makes the gravity of

equipment lower, thus it can be placed stably and reliably.

6. There is a 45 ?  tilt angle between the eyepiece and supporting surface, and this make it comfortable to observe.

7. It features convenient operation, compact structure and elegant appearance.

The main technical parameters

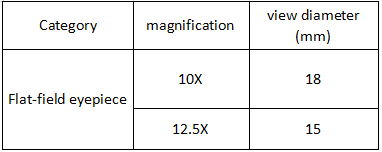

1.1. Eyepiece

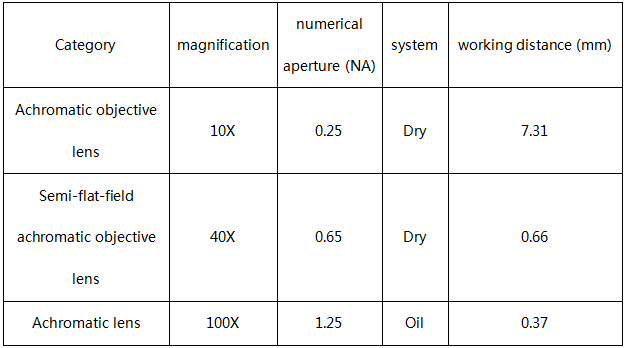

1.2. Objective

1.3. The total optical magnification: 100X-1250X

1.4. Mechanical tube length: 160 mm

1.5. Rough focusing fretting institutions: Focus Range: 7 mm

                    Lattice-valued scale: 0.002 mm

1.6. Rough dynamic focusing range: 7 mm

1.7. Machinery table: 75 * 50 mm

1.8. Lighting bulb: 6v 12w bromine tungsten lamp

1.9. Containing object (diameter): 10,20,42

1.10. Instrument Weight: 5 kg

1.11. Packing box size: 360 * 246 * 360 millimeters
