HBST-3000 Digital screen brinell hardness tester with computer

Automatically read value,Automatic measuring indentation brinell hardness tester

Feature :

* Digital display of Hardness value

* Hardness conversion between different hardness scales

* Manual turret, The instrument adopts the motorized test force application without weight blocks

* Automatic test process, no human operating error

* Large LCD display of testing process, easy operation

* Precision conforms to GB/T 231.2, ISO 6506-2 and ASTM E10

The main functionalities of iVision-HB include:

?1.Portable USB camera with multiple configurable magnifications: 4 magnifications to cover the full measurement range from 0.8mm to 6mm

?2.OS supported: Windows XP, Windows Vista, Windows 7 and 8 32 and 64 bits

?3.Automatic HB Measurement: Automatically finds the indentation circle and calculates the HB hardness value

?4.Manual correction: Test result can be manually corrected with a simple mouse drag move

?5.Statistics: Automatically calaulates the average hardness and its standard deviation

?6.Out of bound alert: Automatically marks the hardness data outliers and the out of bound data points

?7.Data archiving: Test results including measurement data and measurement images can be saved in a file

?8.Reporting: Test results including measurement data, measurement images can be outputed to a Word document. User can customize the report template.

?9.Other functions: Inherits all the functions of iVision-PM Geometry Measurement Software.

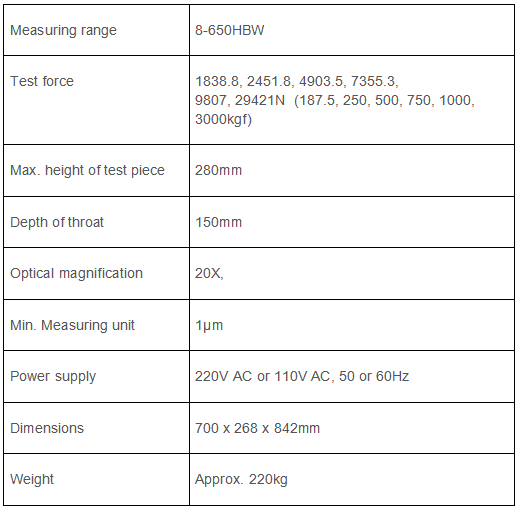

Specifications:

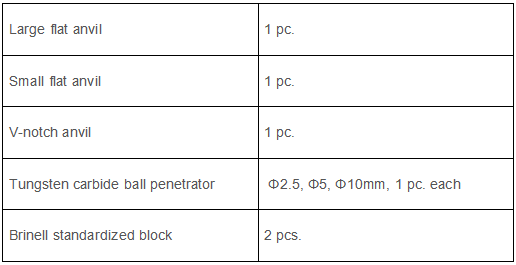

Standard accessories：

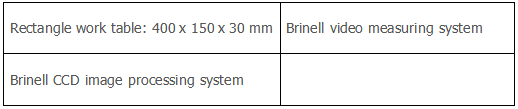

Optional accessories:
