ZHB-3000A Fully Automatic Three Indenters Brinell Hardness Testers

Brinell hardness tester factory, hardness tester manufacturer, China supplier

Description:

1. Adopts casting shell with strong rigidity and precise structure design;

2. Load of test force is controlled by the sensor, which makes the whole structure compact and loading of test force stable and exact.

3. Test process is controlled by CPU, using automatic switching between the objective and the indenter. The location of switching adopts mechanical and electronic double matching, which enables precise positioning;

4. With built-in panel computer, parameter setting is easy and results can be displayed direct; meanwhile, it also avoids the stimulation and visual fatigue caused by the light source of the eyepiece, thus reducing measuring error.

5. After selecting the scale, the instrument can automatically select the indenter and objective; the test table rises automatically and then back to the focusing position after loading the test force; it shows a clear image of the indentation and automatically measures the indentation, which realizes the fully automation of the Brinell test.

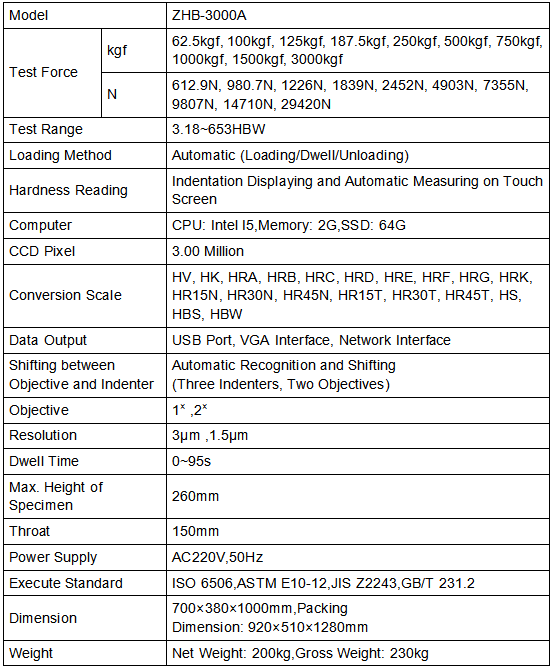

Specification:

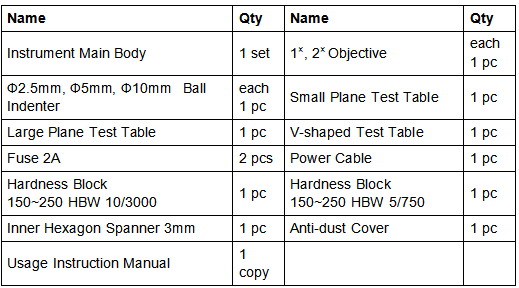

Parking List:
