Introduction：

   TMH-225Q Digital Concrete Hammer is a high-tech product, especially designed for the needs

of in place test for concrete compressive strength, applied to non-destructive test (NDT) hardened

concrete compressive strength component in construct projects.

Features

1.Submit to < Technical Specification of Inspecting Concrete Compressive Strength by Rebound Method >

   (JGJ/T23-2011). And ASTM C805, EN 12504

2.Automatic recording function improves the efficiency of measurement.

3.Using sensitive operation touch keys. The keys are not easy to aging.

4.Integrated wireless structure of the test hammer host and the displayer part. Easy to carry and make work efficient.

5.The instrument is powered by a built-in rechargeable lithium battery,which can operate continuously for more than

   10 hours.

Standard Delivery

● TMH-225Q test hammer

● USB communication cable

● Manual

● Software disc

● Carrying case

● Charger 5v 1A

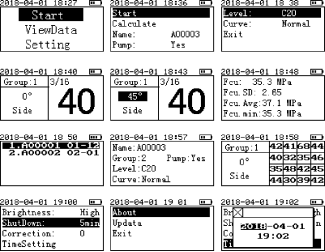

Interface

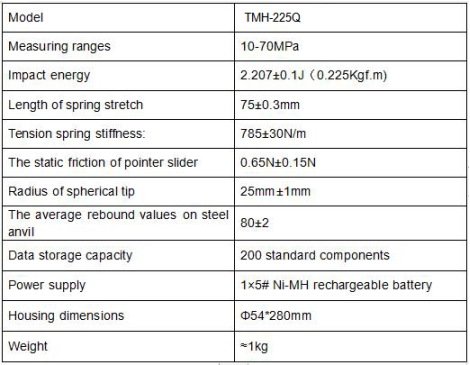

Technical Specification
